Welded Steel Pipe Forming Machine For Tubing Bender / Tube Bending
100 KW
Description
Carbon steel tube mill is designed to produce round tube diameter
of 76–165mm , and wall thickness of 2.0-6.0mm.
The Carbon steel tube mill is designed for forming pipes and tubes
on one continuous line with steel strip, which was slit by slitting
line to fit pipe or tube diameter. Using high frequency induction
heating, this line is capable of producing section material of
various diameters and sizes by squeezing weld seam together into
closed shape.
The application of advanced aperture technology, PLC automatic
control system and Digital speed regulating
unitensurethattheproductionlineworksreliablyand operates
andmaintainseasily.
Specification
| Raw material | Hot rolled steel, cold rolled steel, galvanized steel |
| Round tube outer diameter | 76-165mm |
| Wall thickness Round tube | 2.0-6.0mm |
| Square tube | 70*70mm, 90*90mm, 110*110mm,130*130mm |
| Rectangular tube | 60*80, 80*100, 100*170, 120*140 |
| Wall thickness Square & Rectangular tube | 5.5mm |
| Tube welding speed | 15-50m/min |
| Main DC Drive | 160kW*2 |
| High frequency welder | 600kW |
Main components
1.Uncoiler
I.D. of steel strip: Φ600~Φ800mm
O.D of steel strip: Φ1800mm
2.shearing and butt-welding
insure two-coiled steel strips shearing tidily and then welding
together and leveling weld seam.
3.Hoop cage
Usage: ensure main machine to run continuously while welding two
coiled strips.Accumulating volume: 300m.
4. Feeding device
Vertical guide roll: one pair
Roller for leveling: 7 Rollers
5. Forming device
O.D.: φ60~φ165mm
Wall thickness: 1.5~5.0mm
6. Guide device
two rollers and with pieces for guiding in the middle.
7. Cooling device
Cooling tube
8. Sizing device
Diameter of the pipe: φ60~φ165mm
Wall thickness: 1.5~5.0mm
9.Straightening machine
It is mainly used for straightening of finished pipe roughly
online.
10. Computer-controlled cutting saw
Maximum running speed of the vehicle: 60 m/min
Cutting diameter: φ60~φ165mm
Cutting thickness: ≤5.0mm
Cutting tolerance: 0~6 mm
Maximum Cutting speed :6 times/min
11. Solid State H.F. Welder
Solid State type, include Rectifier cabinet, Inverter cabinet,
transformer, control panel, cooling system
12. Transmission system
It’s DC Motor with speed reducer, through gearboxes and universal
joints to drive forming and sizing unit
13. Runout Conveyor
Move out finished steel tubes
14. Roller set
Order according to tube sizes
Advantage
1. Any small problems will be solved at the most prompt time.
2. We always offer relateive technical support,quick response,all
your inquire will replied within 24 hours.
3. We can delivery your goods within 25 workdays.
4. OEM service.

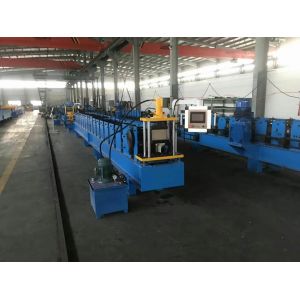

Machine picture
